Description:

A transformer is an electronic device, that is utilized to either raise or lower voltages and supply current  in an electrical circuit. In different electrical distribution frameworks, transformers are utilized to support voltage levels in order to reduce transmission line mistakes.

Theory of Operation of transformer:

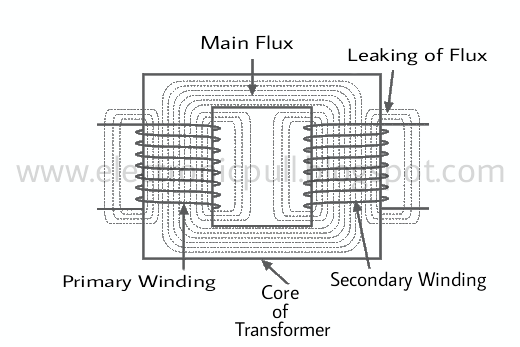

Transfomers depend on Faraday's Law, which expresses that a time changing or shifting attractive field can induce a time shifting or changing voltage in a circle of wire. In a transformer, this is proficient by wrapping different turns of wire around some sort of ferromagnetic material. In transformer, there are two types of windings: that is primary and a secondary. The primary side is connected to the generator; the secondary side is connected to the load. When a time-changing voltage is sent to the primary, the magnetic field is generated inside the ferromagnetic's core. The core serves to focuses the magnetic flux inside the windings. The magnetic flux on the outerside of the windings decreases and the efficiency of the device increases. The time-changing attractive field induces a voltage in the secondary side winding.

The size of the secondary winding voltage relies on upon the turns proportional to the primary and secondary side windings. Assume that the secondary side of a transformer has 100 turns, while the primary side has just 50 turns. The subsequent secondary voltage will be twice that of the primary side voltage. In like manner, if the primary side has 100 turns, and the secondary side has 50 turns, the primary side voltage would be in a large portion of that of the secondary side.

Right now it might appear that we're getting something for little more than, this is not the situation. Review that vitality can nor be made nor annihilated. We realize that the electrical force current into the secondary side windings is the result of the current and voltage. Likewise, the force current moving out of the transformer should likewise be result of its current and voltage. Ignoring mistakes in the transformer center, the voltage entering the transformer should likewise be the voltage leaving the transformer. This implies with a specific end goal to raise the voltage, we should diminish the current. Moreover, by bringing down the voltage, we expand the current. Similarly as with the transformer voltages, the proportions of the current rely on upon the turns of the primary and secondary windings. In any case, when managing current or voltage, recall that the side with the bigger number of turns has the littler current and the other way around. Consider the transformer said above with an primary to secondary turns proportion of 1:2. A 100-A present streaming into the primary would bring about a 50-A present streaming out of the secondary winding.

Uses of Transformer:

The most evident use of the electrical transformer is in force dispersion. Review that in an electrical circuit, P = I^2 R. Subsequently, the force devoured by a circuit component is relative to the square of the present moving through it. In a transmission line, this is vital on the grounds that the line itself has some trademark impedance. Keeping in mind the end goal to decrease power misfortunes in the transmission line, it is attractive to transmit minimal measure of current conceivable. For a given measure of force, the most ideal approach to do this is by expanding or increasing the input voltage that we apply to the transformer at the primary winding side.

The transformer is additionally utilized for matching of the impedances. Given a voltage source and a transmission line with a trademark impedance, it is conceivable to utilize a transformer to make the load seem to be bigger or littler so that the load gets large amount of current. Note that most extreme current is not equivalent to greatest effectiveness. For greatest effectiveness in the utilization of electrical energy, the load should have amazing resistance so that the power lost in whatever is left of the circuit will be negligible. Investigating the comparisons, nonetheless, the load of amazing resistance will get immaterial force (however much higher than whatever is left of the circuit). For any given steady voltage over any load, the force got by the load is given by P = \frac{V^2}{R}. Note again that the comparison utilized here is the one above changed with Ohm's Law, and is the main suitable since Current will drop for this situation if the resistance increases.

Three-stage transformers:

These are, fundamentally, 3 single-stage transformers that have one of their terminals associated with a common or ground terminal, called the neutral or ground terminal, which generally is associated with earth/ground. Their voltages are 120 degrees out of stage from the other two terminals.
